WebMACS¶

Monitor. Automate. Control. — From Any Browser.¶

WebMACS is an open-source control system that turns your Raspberry Pi or Revolution Pi into a real-time monitoring and automation hub for lab experiments and industrial processes.

No cloud. No subscriptions. No vendor lock-in. Your data stays on your hardware.

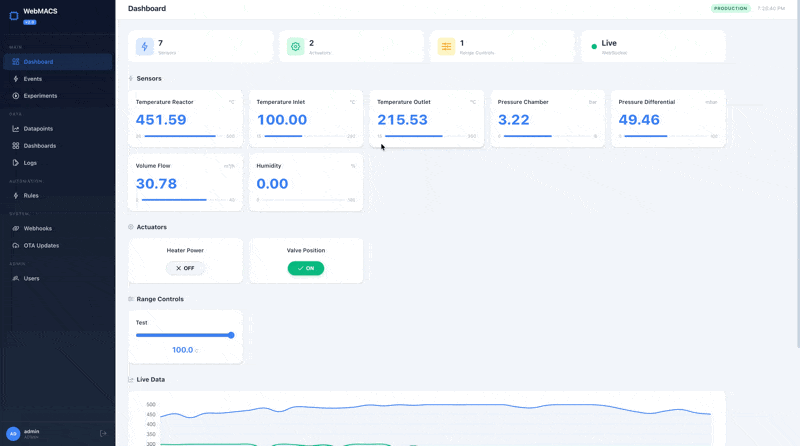

WebMACS Custom Dashboard — Real-Time Monitoring

Who Is WebMACS For?¶

Process Engineers & Researchers¶

Monitor fluidised-bed reactors, temperature profiles, pressure readings, and flow rates — all from your browser. Export experiment data to CSV for analysis in Excel, Python, or MATLAB.

Lab Technicians & Operators¶

Toggle valves, adjust setpoints, and track sensor trends on a live dashboard. Get alerted via Slack or email when values go out of range.

Developers & Integrators¶

Extend the system with a clean REST + WebSocket API. Add new sensor types, build custom dashboards, or integrate with external systems via webhooks.

What Can You Do With WebMACS?¶

Capability	What It Means For You
Real-Time Dashboard	See every sensor value live, toggle actuators, build custom widget layouts — updated via WebSocket in under 100 ms
Experiment Management	Group all readings into named experiments. Start, stop, and export with one click
Custom Dashboards	Build your own dashboards with line charts, gauges, stat cards, and actuator toggles on a 12-column grid
Threshold Alerts	Define rules like "if temperature > 200 °C → notify Slack". No code required
Webhook Integrations	Push events to Slack, Teams, Node-RED, Home Assistant, or any HTTP endpoint
CSV Export	Download millions of datapoints as a CSV — streamed, instant, ready for pandas or Excel
Over-The-Air Updates	Deploy new versions via USB, file upload, or network — works fully offline
Plugin System	Connect any sensor or protocol — write a Python plugin, upload the `.whl` file, and see live data on your dashboard in under 20 minutes. No vendor, no recompilation.
One-Command Install	Single script installs Docker, generates credentials, starts all services, and enables auto-boot

Your Process. Your Dashboard.¶

Traditional SCADA systems lock you into predefined screens. WebMACS lets every operator build their own dashboard — no programming required.

Pick from line charts, gauges, stat cards, and actuator toggles. Place them on a 12-column grid with size presets from compact to full-width. Each widget connects to a live sensor event and refreshes automatically — with proper axis labels, units, and time scales out of the box. Create as many dashboards as you need: one for the reactor, one for the chiller loop, one for the client demo.

10 minutes, not 10 days.

Build Your First Dashboard →

Your Sensors. Your Protocol. Your Plugin.¶

Need to read a Modbus sensor? A serial weather station? An MQTT topic? With WebMACS, you don't wait for a vendor update — you write a Python class and upload it as a .whl file.

The plugin SDK gives you:

Five methods to implement — get_channels, _do_connect, _do_disconnect, _do_read, _do_write
Built-in demo mode — simulate realistic data without hardware
13 free conformance tests — inherit from PluginConformanceSuite
Automatic channel → event mapping — link a channel to an event and it flows into dashboards, alerts, CSV export, everything
A complete example — examples/custom-plugin/ contains a ready-to-build Weather Station plugin with tests and documentation

20 minutes from idea to live data on your dashboard.

Plugin Development Guide →

Connect WebMACS to Everything¶

WebMACS isn't a closed box — it's a Lego building block that fits into your existing infrastructure.

30+ REST endpoints — read and write every resource programmatically
Plugin SDK — build custom device drivers in Python and upload them as .whl packages — Modbus, MQTT, serial, or any protocol
WebSocket streaming — sub-second live data for custom UIs
HMAC-signed webhooks — push events to Slack, Node-RED, Home Assistant, or any HTTP endpoint
CSV export — pipe data into pandas, Excel, or MATLAB

Think of it as a Swiss army knife for lab and plant data: one tool, unlimited integrations.

See Integration Examples →

Get Started in 5 Minutes¶

Production (RevPi / Raspberry Pi)Development (Local)

# Transfer the bundle to your device and run:
sudo bash scripts/install.sh webmacs-update-2.0.0.tar.gz

Open http://<device-ip> and log in with the credentials shown during install. See the Installation Guide for step-by-step details.

git clone https://github.com/stefanposs/webmacs.git
cd webmacs
docker compose up --build -d

Open http://localhost and log in. See Quick Start for default credentials.

Quick Start Guide → View on GitHub →

Architecture at a Glance¶

graph LR
    Hardware["Sensors & Actuators"] -->|I/O| Controller["IoT Controller<br/>(Python)"]
    Controller -->|HTTP / WebSocket| Backend["FastAPI Backend"]
    Backend -->|async| DB[(PostgreSQL)]
    Frontend["Vue 3 Dashboard<br/>(Browser)"] -->|REST + WS| Backend
    Backend -->|Webhooks| External["Slack / Teams / APIs"]

Layer	Technology
Backend	FastAPI · SQLAlchemy 2 async · Pydantic v2 · Python 3.13
Frontend	Vue 3 · TypeScript · Vite · PrimeVue · Pinia
Controller	Python 3.13 · HTTPX · RevPi I/O
Database	PostgreSQL 17
Deployment	Docker Compose · Nginx · systemd

Architecture Deep Dive →

Documentation Map¶

Section	For	What You'll Find
Getting Started	Everyone	Install, configure, first login
User Guide	Operators & Engineers	Dashboard, experiments, rules, plugins, CSV export, OTA
Architecture	Developers	System design, WebSocket protocol, database layer
API Reference	Developers	REST + WebSocket endpoint docs, Pydantic schemas
Development	Contributors	Code style, testing, CI/CD, how to contribute
Deployment	DevOps	Docker, production hardening, environment variables

Built With¶

Python 3.13 — Backend & Controller

Vue 3 — Reactive SPA with TypeScript

PostgreSQL 17 — Reliable, proven storage

Docker Compose — One command, all services

Contributing¶

Contributions are welcome! See the Contributing Guide for development setup and workflow.

License¶

MIT — see LICENSE for details.
